16+4 Ft Total Length with Dovetail & Ramps

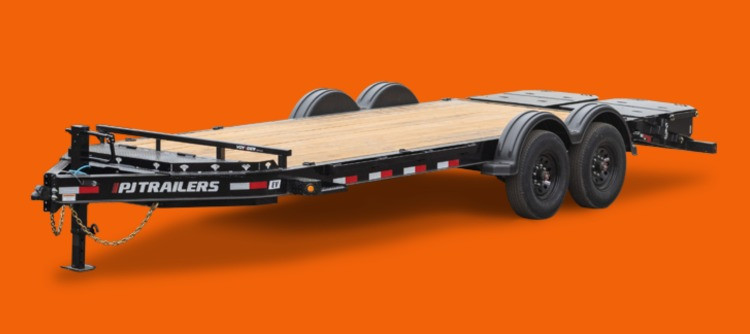

The PJ 16+4 Equipment Trailer features a 16-foot flat deck with a 4-foot dovetail, giving you a full 20 feet of usable hauling space. Built for strength and reliability, this trailer is ideal for transporting loaders, mini excavators, vehicles, and more.

⚠️ This is a non-tilt trailer — equipment is loaded using rear fold-up ramps.

Key Specifications

• Deck Length: 16 ft flat + 4 ft dovetail (20 ft total)
• GVWR: 14,000 lbs (14K trailer)
• Payload Capacity: ~10,000–11,000 lbs
• Axles: Dual 7,000 lb axles
• Ramps: Heavy-duty fold-up rear ramps
• Brakes: Electric brakes (both axles)
• Hitch: 2 5/16” ball (bumper pull)

Common Uses

• Hauling mini excavators (Kubota U10-5, Deere 35P)
• Transporting Avant loaders and attachments
• Moving skid steers, tractors, and equipment
• Vehicle hauling (cars, trucks, UTVs)

Why This Trailer?

• 14K capacity – built for real equipment hauling
• Dovetail + ramps – safer, smoother loading angle
• Simple & reliable – no tilt system, fewer failure points
• Versatile – works for contractors and property owners

Rental Notes

• Requires a properly rated truck (up to 14,000 lbs towing capacity)
• Brake controller required for safe operation
• Best for users comfortable loading via ramps (non-tilt)
